LH Model Remote Control Double Beams Electric Travelling Overhead Crane
LH Model Electric Travelling Overhead Crane Brief Introduction
1. The Electric Hoist 10 20 Ton Double Girder Overhead Crane is light and medium duty materials lifting machine, with lifting capacity of 1-10 ton, span of 10.5~31.5 meters, and lifting height of 6-9 meters. The equipment is widely used in factories, mines, warehouses and workshops.
2. The 16t Hoist Overhead Crane is mainly comprised of box-shape bridge, trolley, long travelling mechanism, cab and electric control system.
3. It is prohibited to use the equipment in combustible, explosive and corrosive environment.
LH Model Electric Travelling Overhead Crane Technology Parameter
| Lifting weight(t) | 10 |
| Span(m) | 10.5-31.5 |
| Speed (m/min) | Hoisting | 7,7/0.7 |
| Traveling of crab | 20 |
| Traveling of trolley | Surface | 20(30) |
| Cabin | 20(30) |
| Electric hoist | ZD151-4/13 |
| Lifting height(m) | 9,12 |
| Working class | A3~A5 |
| Power source | 380v 50Hz three-phase |
| Crane rail recommended(kg/m) | 38 |
LH Model Electric Travelling Overhead Crane Component
Girders are made of well-chosen steel plate, and processed by shot-blasting technology, thus
the intensity and toughness are reliable. On the main girders laid the rails for cross travel.
The trolley adopts an electric hoist fixed on the trolley frame as the lifting mechanism. CD
model electric hoist with single speed and MD model electric hoist with double speeds are in
choice according to your demand.
Electric parts adopt international brand Siemens and Schneider.
1. The motor adopted is top in China and features large overload capacity and high machinery intensity with low noise. With the protection level of IP44 or IP54, and insulation class of B or E, , the LH overhead crane is able to meet the demand of general usage.
2. The electric parts adopt international brand Siemens, Schneider, or Chinese top brand Chint to ensure the accurate and safe operation.
3. Wheels, gears, and couplings are processed by medium-frequency quenching technology, abd have a great improvement in intensity, rigidity and tenacity.
4.Painting: a Primer and finishing paint b Average thickness: about 120 microns c Color: according to your request
LH Model Electric Travelling Overhead Crane Safety
1. Weight overload protection device Weight overload protection device will warn when the lifted materials are beyond the capacity, and the displayer will show the data.
2. Current overload protection device shall cut off the power when the current overstep the set figure.
3. Emergency stop system shall be used to stop all motions once any emergency occurs to avoid more damage.
4. The limit switch prevent the travelling mechanism from over travel.
5. The polyurethane buffer can absorb impact and help travelling mechanism stop softly and harmlessly.
LH Model Electric Travelling Overhead Crane After-sale Service
1. The warranty is 1 year.
2. During the warranty spare parts are provided fee okgkgkgk charge for quality problem under correct operation.
3. Low charge for maintenance when the warranty is expired.
4. Experienced engineers are available.
LH Model Electric Travelling Overhead Crane Sketch
Product Tags:
|
|

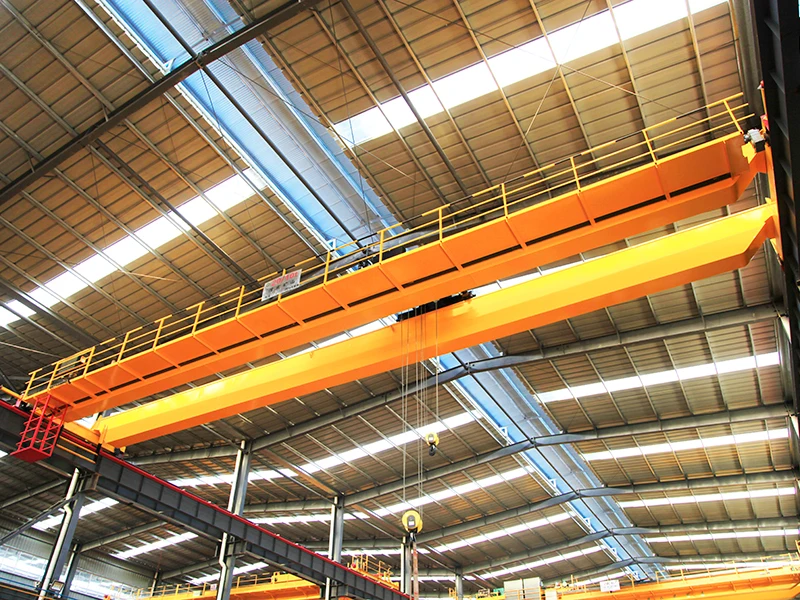

LH Model Remote Control Double Beams Electric Travelling Overhead Crane Images
|
